51 Series Round Wire Lock Pins

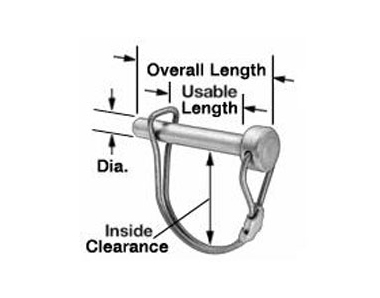

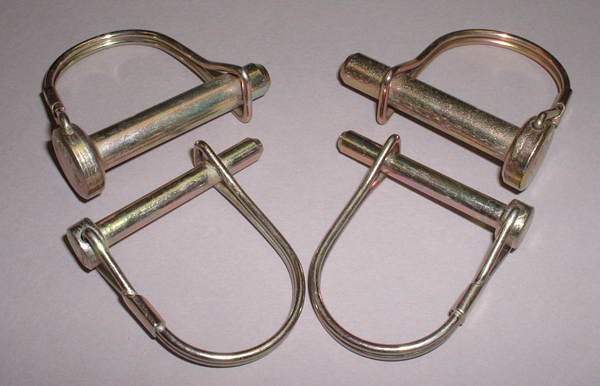

Product Image and Schematic
MCT 51 Series Round Wire Lock Pins are ideal for cable assemblies, cable lanyards and custom assemblies requiringa one piece pin fastener. The one piece wire lock pin eliminates the need for a cotter pin and allows for easy installation.
Shaft Diameters range from 1/4” to 3/8”.
| P/N | Shaft Dia | Usable Length | Shank Length | Overall Length | Inside Clearance | Wire | Weight |
|---|---|---|---|---|---|---|---|
| 21968 | 1/4 " | 1 3/8 " | 1 11/16 " | 2 " | Round | 0,056 | |
| 21970 | 1/4 " | 1 3/4 " | 2 " | 2 1/4 " | Round | 0,0635 | |
| 21973 | 1/4 " | 2 1/2 " | 2 " | 3 3/16 " | Round | 0,076 | |
| 21974 | 5/16 " | 1 1/4 " | 1 " | 1 13/16 " | Round | 0,075 | |
| 21975 | 5/16 " | 1 3/8 " | 1 " | 1 7/8 " | Round | 0,08 | |
| 21978 | 5/16 " | 1 3/4 " | 2 " | 2 1/4 " | Round | 0,09 | |
| 21982 | 5/16 " | 2 1/4 " | 2 " | 3 " | Round | 0,101 | |
| 21983 | 5/16 " | 2 1/2 " | 2 " | 3 1/8 " | Round | 0,107 | |
| 21990 | 3/8 " | 1 1/2 " | 1 " | 2 " | Round | 0,1 | |
| 21992 | 3/8 " | 1 3/4 " | 2 " | 2 5/16 " | Round | 0,12 | |
| 21986 | 3/8 " | 2 1/4 " | 2 " | 2 3/4 " | Round | 0,14 | |
| 21997 | 3/8 " | 2 1/2 " | 2 " | 3 " | Round | 0,134 |
Note:
Standard material is Carbon Steel and Zinc Plated. For additional material and sizes contact MCT Customer Service.
