NAS-1435E / NAS-1435K Strap

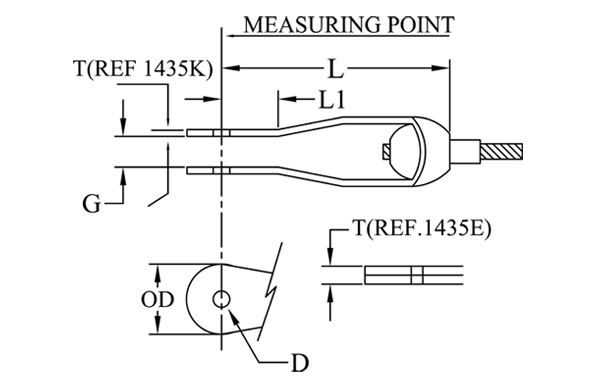

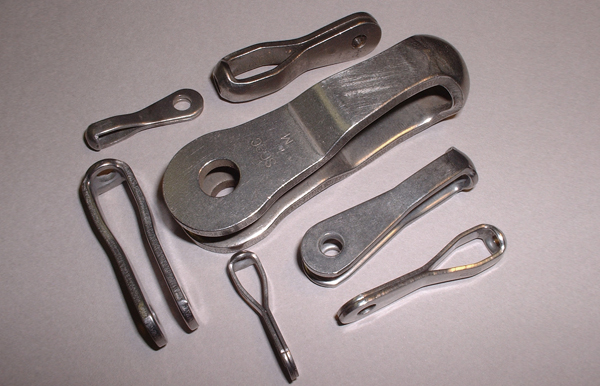

Product Image and Schematic
The NAS-1435E and NAS-1435K series strap fork end fittings are manufactured from stainless steel in accordance to MIL-DTL-781 to the strict standards of Mil Spec NAS 1435E and NAS-1453K. Also known as “strap eyes” and “strap fork end fittings”, they are certified to the Mil Spec standard for this part series, NAS-1435E and NAS-1435K. Both NAS-1435E and NAS-1435K strap fittings are DFARS compliant for all US Military Specification usages Contact MCT Customer Service for additional MS type Military Spec fittings.
| MS Part No. Stainless Steel | Nom Cable Dia. | L | L1 | D | T 1435K Ref. | T 1435E Ref. | O.D. | G |
|---|---|---|---|---|---|---|---|---|
| -2 | 1/16 | 1-1/16 | .454 | .188 | .042 | .088 | 3/8 | .093 |
| -3 | 3/32 | 1-1/2 | .616 | .188 | .049 | .103 | 7/16 | .108 |
| -4 | 1/8 | 1-5/8 | .638 | .188 | .093 | .190 | 1/2 | .195 |
| -5 | 5/32 | 1-31/32 | .699 | .250 | .096 | .197 | 9/16 | .202 |
| -6 | 3/16 | 2-3/16 | .750 | .313 | .125 | .255 | 11/16 | .260 |
