43 Series Right Hand TT (316 SS)

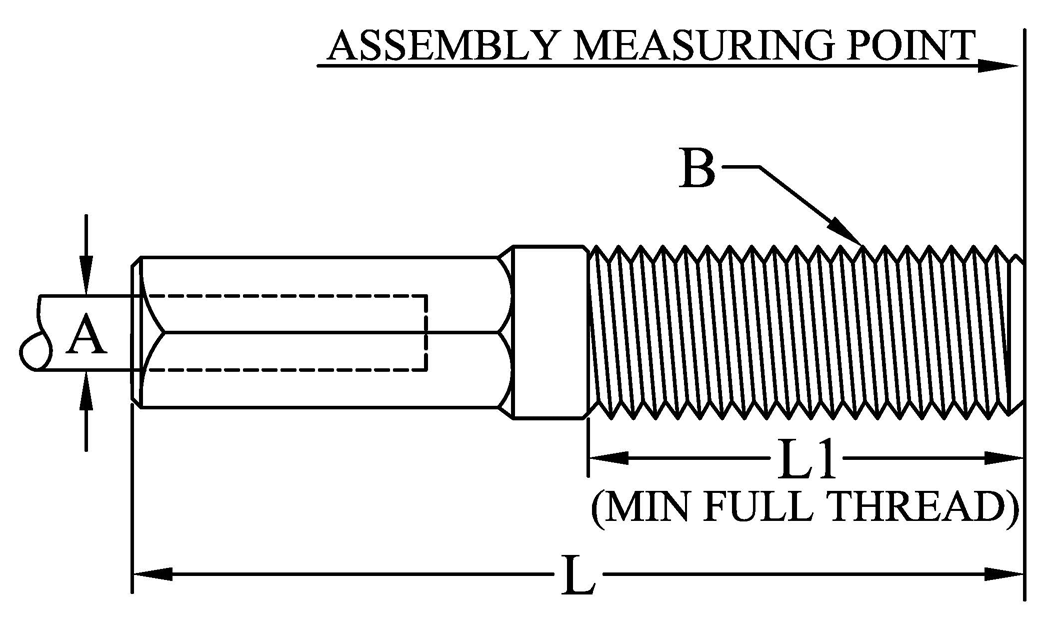

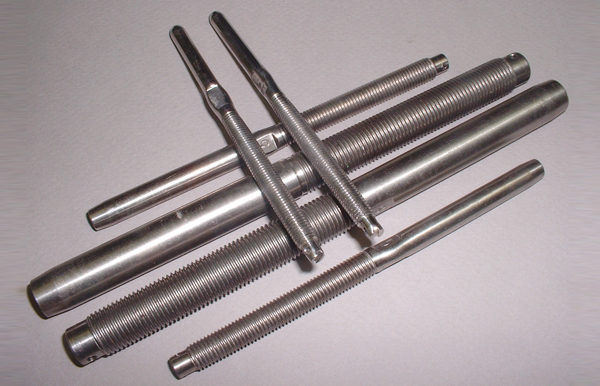

Product Image and Schematic
MCT 43 Series Marine Grade 316 Type Stainless Steel Right Hand Threaded Terminal is ideal for use in marine applications where a more corrosion resistant Stainless Steel in needed. These fittings can be used in cable assemblies, cable lanyards and push pull controls for outdoor applications such as boating, cable railing and security. Type 316 SS threaded terminal UNF right hand thread.
PART NUMBER | A (CABLE) | B (THREAD) | L1 | L | SHANK BEFORE SWAGE | SHANK AFTER SWAGE (HEX) |
---|---|---|---|---|---|---|
43-1032-001 | 10-32 | 1/16 | 1.690 | 3.370 | 0.160 | 0.138 |
43-1032-001 | 10-32 | 3/32 | 1.750 | 3.620 | 0.218 | 0.190 |
43-1428-001 | 1/4-28 | 3/32 | 2.250 | 4.120 | 0.218 | 0.190 |
43-1428-002 | 1/4-28 | 1/8 | 2.200 | 4.320 | 0.250 | 0.219 |
43-1428-003 | 1/4-28 | 5/32 | 2.150 | 4.640 | 0.297 | 0.250 |
43-1428-004 | 1/4-28 | 3/16 | 2,190 | 4.940 | 0.359 | 0.313 |
43-31324-001 | 5-16-24 | 5/32 | 2.120 | 4.430 | 0.297 | 0.250 |
43-31324-002 | 5-16-24 | 3/16 | 2.500 | 5.120 | 0.359 | 0.313 |
43-37524-001 | 3/8-24 | 3/16 | 2.680 | 4.070 | 0.359 | 0.313 |
43-37524-002 | 3/8-24 | 1/4 | 2.750 | 5.870 | 0.494 | 0.438 |
43-50020-001 | 1/2-20 | 1/4 | 3.000 | 6.430 | 0.494 | 0.438 |
43-50020-002 | 1/2-20 | 9/32 | 3.100 | 6.730 | 0.563 | 0.500 |
43-50020-003 | 1/2-20 | 5/16 | 3.120 | 7.310 | 0.635 | 0.563 |
43-62518-001 | 5/8-18 | 3/8 | 4.000 | 8.690 | 0.703 | 0.625 |
