50 Series Square Wire Lock Pins

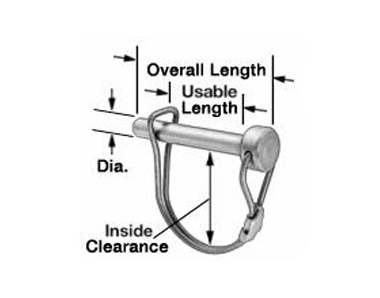

Product Image and Schematic

This slideshow requires JavaScript.

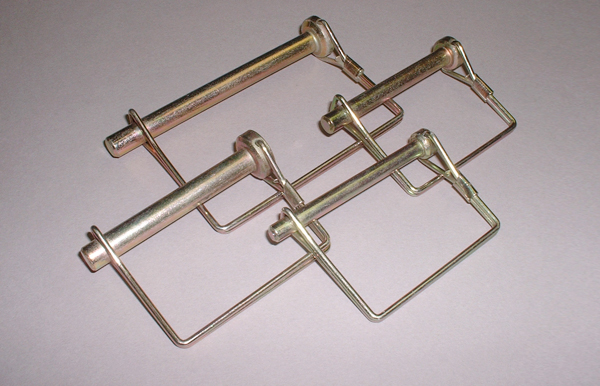

MCT 50 Series Square Wire Lock Pins are ideal for cable assemblies, cable lanyards and custom assemblies requiring a one piece pin fastener. The one piece wire lock pin eliminates the need for a cotter pin and allows for easy installation.

Shaft Diameters range from 1/4” to 3/8”.

Wirelock Pin
P/N Shaft
Dia
Usable
Length
Shank
Length
Inside Clearance Overall Length Wire Weight
50-250-01 1/4 " 2 1/4 " 2 " 3 " Square 0,079
50-250-02 1/4 " 2 1/2 " 2 " 3 3/16 " Square 0,081
50-313-01 5/16 " 2 1/4 " 2 " 3 " Square 0,106
50-313-01 5/16 " 2 1/2 " 2 " 3 1/8 " Square 0,105
50-375-01 3/8 " 2 1/4 " 2 " 2 3/4 " Square 0,14
50-375-02 3/8 " 2 1/2 " 2 " 3 " Square 0,152
50-375-03 3/8 " 3 7/16 " 3 " 4 " Square 0,19

Note:

Standard material is Carbon Steel and Zinc Plated.
For additional material and sizes contact MCT Customer Service.
