12 Series Marine Eye (Type 316 SS)

Product Image and Schematic

This slideshow requires JavaScript.

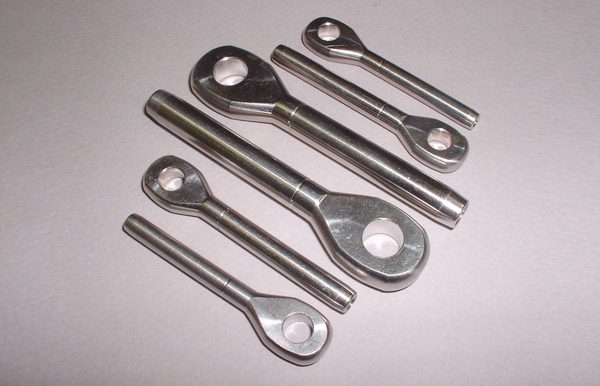

MCT 12 Series Marine Grade 316 Type Stainless Steel Marine Eye is ideal for use in marine applications where a more corrosion resistant Stainless Steel in needed. These fittings can be used in cable assemblies, cable lanyards and push pull controls for outdoor applications such as boating, cable railing and security.

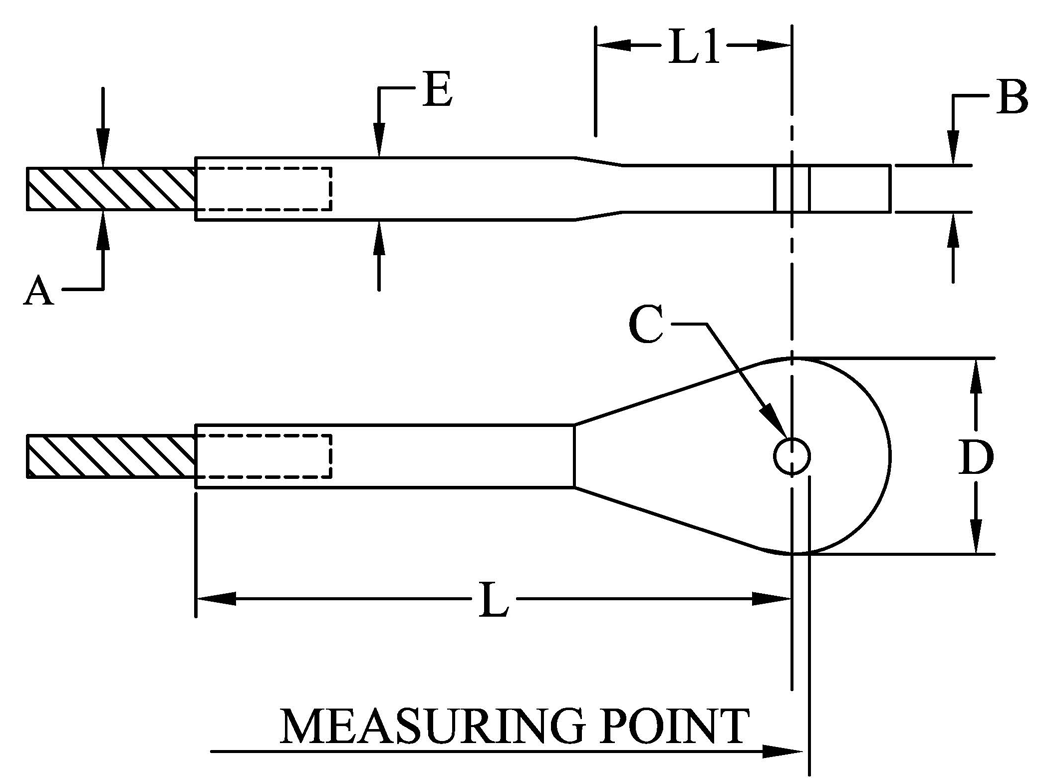

PART NUMBER (A) Cable Dia. (B) Thickness (C) Pin ID (L) Length LI ± .020 (D) OD Ref (E) After Swage
12-063-260 1/16" 0.220 0.250 1.500 0.523 0.359 0.138
12-093-260 3/32" 0.220 0.250 1.760 0.707 0.438 0.190
12-125-260 1/8" 0.220 0.250 2.090 0.738 0.500 0.219
12-156-330 5/32" 0.280 0.313 2.360 0.831 0.640 0.250
12-188-330 3/16" 0.360 0.315 2.750 0.903 0.781 0.313
12-250-510 1/4" 0.470 0.500 3.630 1.133 0.968 0.438
12-313-640 5/16" 0.590 0.500 4.500 1.373 1.218 0.563

Note:

Machine swage only. For proper functioning, observe correct “after” dimensions.
