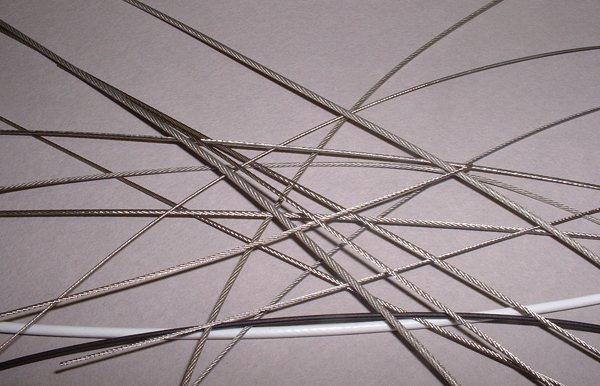

  • sa minature cable

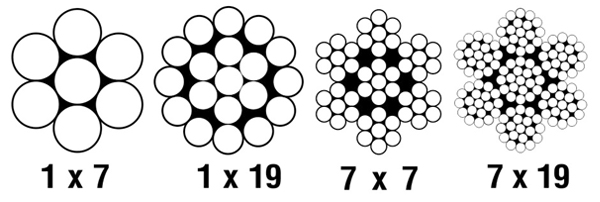

  • Cable Diameter Schematics

SA miniature cables can be Nylon and Vinyl Coated for extra corrosion protection and abrasion resistance. In some applications will aid in reducing friction.

SA Cables can be pre-stretched in a special process to eliminate constructional stretch if the stretch is an important factor.

Standard tolerance for bare and coated cable from .006 through .038 is ±.002”, and from .045 through .062 is ±.004”.

BARE CABLE
PART NUMBER
BARE CABLE DIACOATED CABLE
PART NUMBER
CABLE MIN. BREAK
STRENGTH LBS.
SA-012-17B.012SA-019-17C20
SA-019-17B.019SA-024-17C45
SA-024-17B.024SA-030-17C90
SA-030-17B.030SA-037-17C120
SA-031-17B.031SA-037-17C130
SA-010-119B.010SA-014-119C16
SA-015-119B.015SA-024-119C35
SA-018-119B.018SA-024A-119C45
SA-020-119B.020SA-027-119C70
SA-014-77B.014SA-019-77C26
SA-018-77B.018SA-024-77C40
SA-024-77B.024SA-031-77C70
SA-027-77B.027SA-034-77C90
SA-031-77B.031SA-037-77C120
SA-036-77B.036SA-044-77C160
SA-015-719B.015SA-021-719C25
SA-018-719B.018SA-024-719C40
SA-024-719B.024SA-030-719C70
SA-031-719B.031SA-037-719C120
SA-038-719B.037SA-046-719C160
SA-047-719B.047SA-062-719C270

Please contact MCT Customer Service for design assistance and coating options.
