76 Series Bicycle Conduit

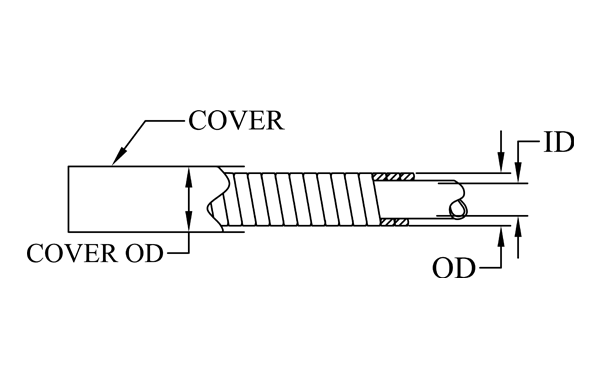

Product Image and Schematic

This slideshow requires JavaScript.

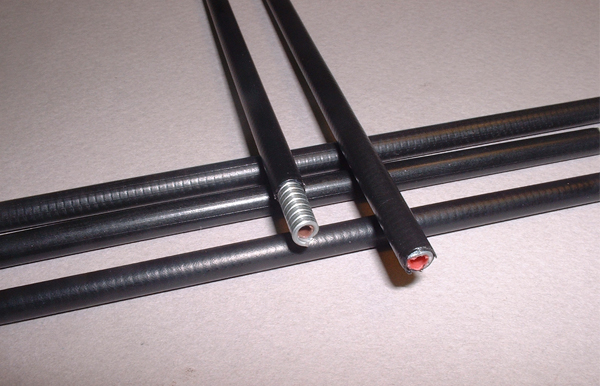

MCT 76 Series Bicycle Conduit is ideal for smaller cable size custom controls, push pull controls and cable assemblies. The Bicycle Conduit has a nylon cover OD and a Teflon cable liner. This nylon cover increases the corrosion resistance for the conduit and limits the amount of damage to surrounding areas from contact with the bare casing. The Teflon liner provides increased friction resistance caused by metal on metal contact. The Bicycle Conduit provides a medium duty solution with good crush resistance and can be used for many applications.

The 76 Series Bicycle Conduit is suitable for medium throttle controls, medium duty controls, bicycle controls and other automotive type controls.

PART NUMBER ID
+ - .005
OD
+ - .005
COVER OD
-0.005
COVER TYPE LINER TYPE WIRE TYPE
76-140 0.086 0.140 Galv. M.W.
76-140-01 0.086 0.140 0.188 PVC Galv. M.W.
76-156 0.068 0.156 HDPE Galv. M.W.
76-156-01 0.068 0.156 0.188 NYLON TEFLON Galv. M.W.
76-156-02 0.068 0.156 0.188 HDPE HDPE Galv. M.W.
76-156-03 0.068 0.156 0.188 PVC HDPE Galv. M.W.

Note:

HDPE- High Density Polyethylene
PVC- Polyvinylchloride
GaIv.- Galvanized
M.W.- Music Wire
For Stainless Steel Conduit options contact MCT Customer Service.
