74 Series Bare Bowden with Liner

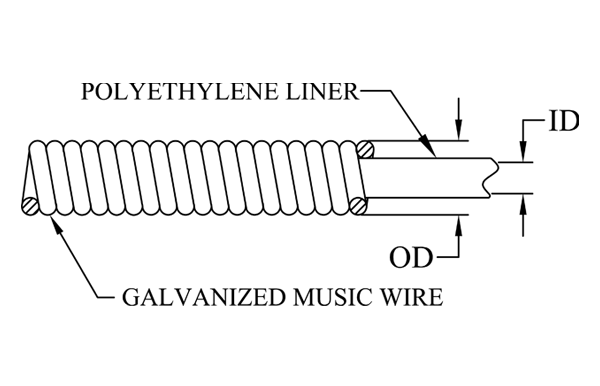

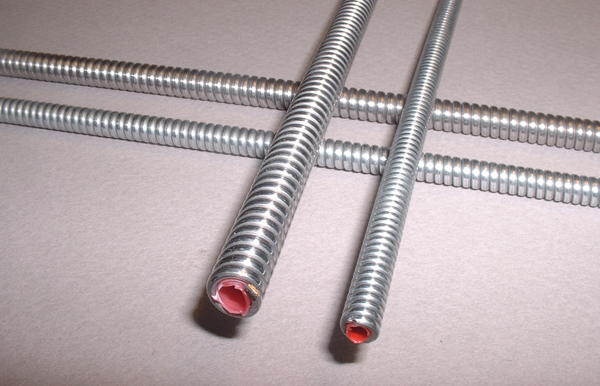

Product Image and Schematic

This slideshow requires JavaScript.


MCT 74 Series Bare Bowden with Liner Conduit is ideal for custom controls, push pull controls and cable assemblies. Bare Bowden with Liner type Conduits do not have a plastic sheathing but have a cable liner. This High Density Polyethylene liner reduces friction for the assembly. This conduit provides a medium duty solution with good crush resistance and can be used for many applications.

The 74 Series Bare Bowden with Liner Conduit is suitable for medium throttle controls, medium duty controls other automotive type controls.

PART NUMBER CONDUIT SIZE ID + - .005 OD + - .005 LINER TYPE WIRE TYPE
74-187 3/16 0.080 0.188 HDPE Galv. M.W.
74-218 7/32 0.095 0.218 HDPE Galv. M.W.
74-250 1/4 0.100 0.247 HDPE Galv. M.W.
74-280 9/32 0.130 0.277 HDPE Galv. M.W.
74-312 5/16 0.158 0.308 HDPE Galv. M.W.

Note:

HDPE- High Density Polyethylene
GaIv.- Galvanized
M.W.- Music Wire
For Stainless Steel Conduit options contact MCT Customer Service.
